Plugs and Packers

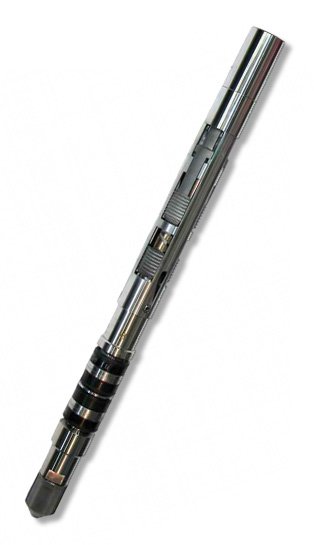

E-RPLUG Retrievable Bridge Plug

Eclipse Well Services E-RPLUG System is a high quality retrievable Bridge Plug designed to provide pressure control or tubing anchoring in
completions where nipple profiles are either damaged or not available. The E-RPLUG can be set using E-POWER Setting tools on slickline, e-line or coiled tubing. Retrieval of the E-RPLUG is done using a standard GS-pulling tool and standard retrieval procedures. A patented releasing mechanism allows easy retrieval of the plug and makes it possible to fit a variety of equalizing or pump through subs on the bottom of the plug.

FEATURES & BENEFITS

  1. Wellbore Isolation
  2. Can be used as straddle system with straddle conversion kit
  3. Suspend instrumentation (P/T memory gauges)
  4. Hanger system for artificial lift systems like velocity strings
  5. Orifice downhole choke
  6. Downhole check valve
  7. Pump open sub
QUPplug
Download Tech Sheet

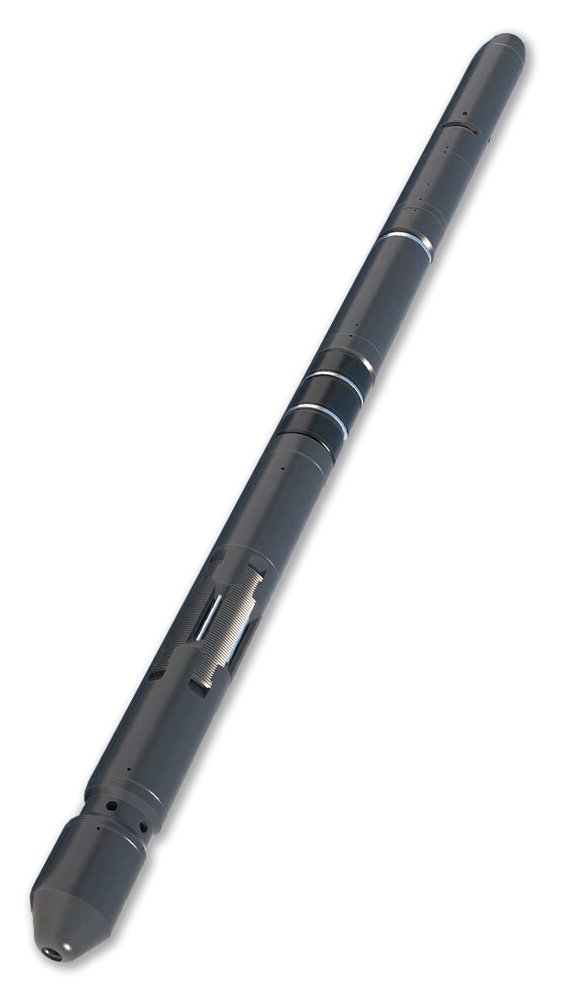

V0 Retrievable Bridge Plug

Eclipse Well Services V0 Retrievable Bridge Plug can be deployed using slickline, e-line or coiled tubing. It can be set using conventional industry standard setting tools and associated interface connections. Pulling the plug is done using a standard GS Pulling tool with prong to equalize. The V0 plug has been tested and certified according to ISO14310 V0 (Gas tight) standards. Elastomers are available that can work in temperatures up to 150degC.

FEATURES & BENEFITS

  1. Temporary Wellbore Isolation
  2. Suspend Instrumentation (P/T memory gauges)
  3. Zonal isolation
  4. Downhole Check valve
v0-plug
Download Tech Sheet

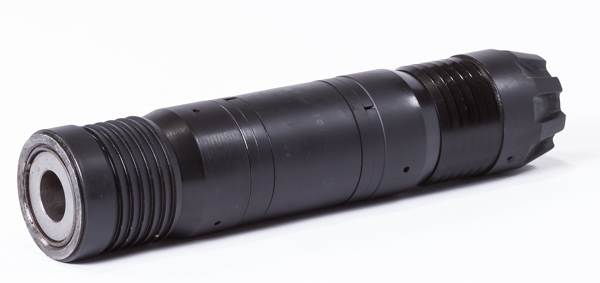

C-PLUG Cast Iron Bridge Plug V3

The Eclipse Well Services C-PLUG Wireline Set / Drillable is a cast iron bridge plug designed to hold large pressure differentials at elevated temperatures. It is primarily used for plug and abandonment situations. When it is time for removal, the cast iron construction allows it to be removed with a milling operation

FEATURES & BENEFITS

  1. Electric wireline set
  2. Sets in any grade casing – including P-110
  3. Rated to 10,000 psi at 275°F V3 (350°F – VITON)
  4. Can be set on any wireline pressure setting tool
  5. Designed for extra high pressure and rapid drill-out
b52ddbce71346f9fe11a0e2719785396
Download Tech Sheet

Speak to the team

Contact us if you have any special requirements or if your desired plug or packer is not mentioned above. Eclipse Well Services will work on a solution for your Well
